The XW1 can be configured to work on a variety of articulated hydraulic plant. Height limitation is controlled using proportional soft-stop hydraulic valves providing accurate and repeatable performance without detriment to the machine. Operation is fail safe and fully automatic with function selection never more that two key presses away.
Find Retailer Data Sheet Operating Instructions5 Year Warranty
Major components carry a five year guarantee excluding mis-use and physical damage.
XW1 Series is suitable for
Excavators
Backhoe Loaders
Telehandlers
Truck-Mounted Cranes
Forklifts
Mobile Cranes
Special Purpose Machines
Tractor Mounted Hedge Cutters
Height Control
All motions are individually controlled with feather touch ramped hydraulic slow down and soft stop. This eliminates machine bounce, overshoot or undershoot, which is gentler on the machine and safer for the operator and their surroundings. An optional chassis sensor can be installed to correct for terrain slope.

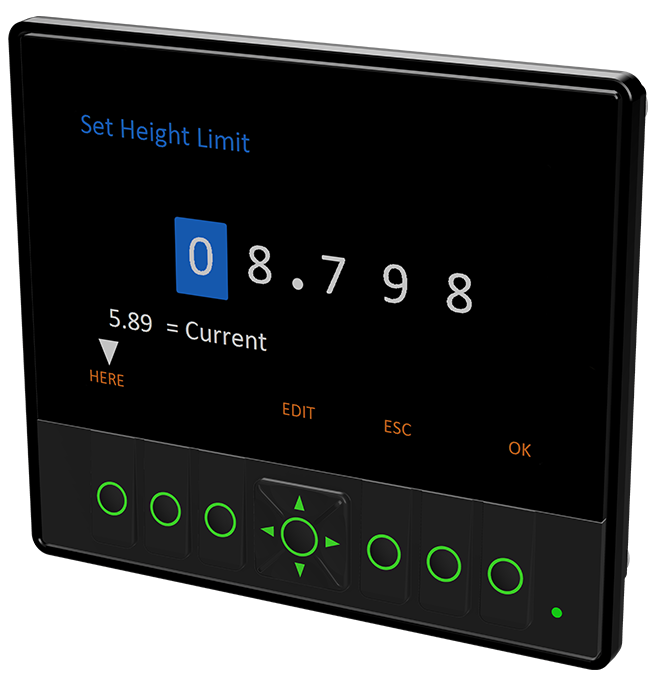

Setting a Height Limit
A height limit can be either manually keyed in or set automatically by positioning the machine equipment and pressing HERE. Set up is simple, quick, and can be protected with an optional access key switch. All settings are retained and will be active on start-up. Additional tools need to be in their least favourable position when a limit is set.
Options
| Access key switch | Prevents/allows setting changes | |
|---|---|---|
| Beacon | Height limit active indication | |
| Reeling drum | Monitors telescopic arm extension (single proximity switch detection also available) | |
| Platform sensor | Monitors chassis pitch and roll angles | |
| Data Logger | CAN bus mounted event recorder with SD card | |
| 12VDC Valve coils | No cost option for smaller machines | |
