The XW Rail can be configured to work on a variety of articulated hydraulic plant. Height and slew limitation is controlled using proportional soft-stop hydraulic valves providing accurate and repeatable performance without detriment to the machine.

Find Retailer Data Sheet Operating Instructions

5 Year Warranty

Major components carry a five year guarantee excluding mis-use and physical damage.

XW Rail MEWP is suitable for

On Track MEWPS (mobile elevating work platforms)

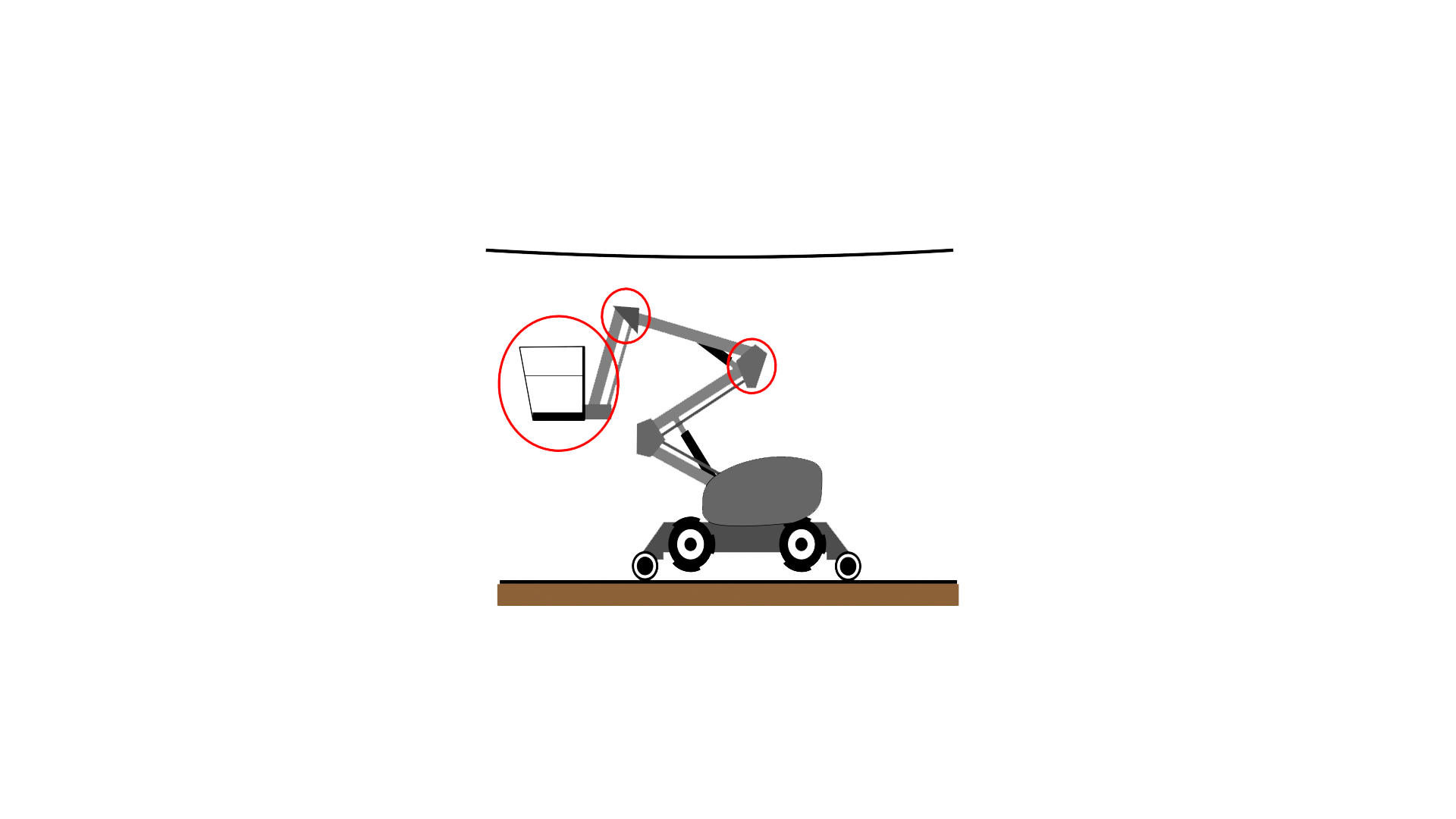

Height Limitation

Operation is fail safe and fully automatic with function selection never more that two key presses away.

All potential machine high points are monitored and appropriate motions controlled. Full power is always available to move away from a limit.

Motions are controlled with ramped slow down on approach and soft-stop. There is no machine ‘bounce’, overshoot, or undershoot. An optional chassis sensor can be installed to correct for terrain slope.

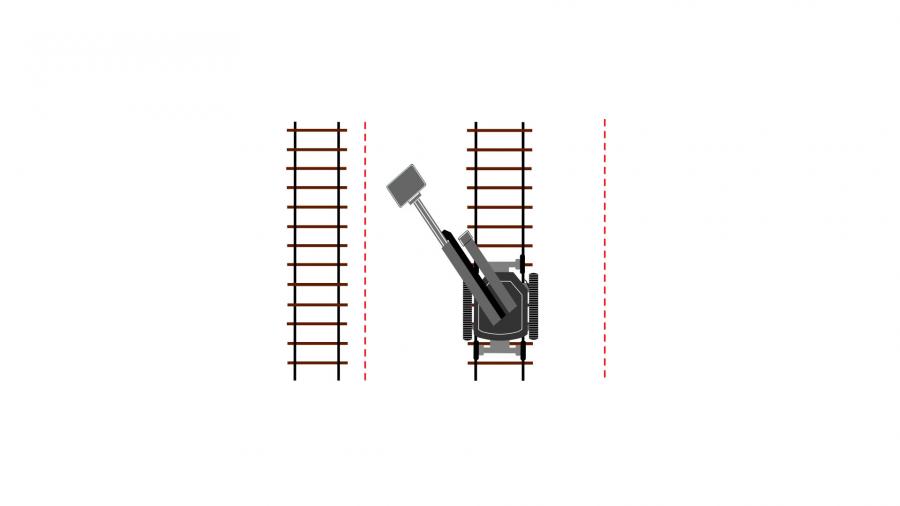

Slew Limitation

Single/dual parallel wall or angular limitation are available. When walls are in use, the front end equipment is also monitored and controlled for limit breach.

Limits can be either manually keyed in or set by positioning the machine. If both limits are active, the system will automatically flip to the appropriate display should a hazard approach occur. Set up is simple, quick, and can be protected with an optional access key switch. All settings are retained and will be active on start-up.

Access key switch	Prevents/allows setting changes
Beacon	Limits on indication.
Reeling drum	Monitors telescopic arm extension (single proximity switch detection also available)
Offset boom sensor	Monitors offset boom position for slew control (single proximity switch detection also available)
Platform sensor	Monitors chassis pitch and roll angles
Data Logger	CAN bus mounted event recorder with SD card
12VDC Valve coils	No cost option for smaller machines
